Mosfet - V3 above the gearbox - JeffTron

Professionally designed mosfet designed for AEGs.
The device increases the cadence of the weapon and the endurance of the battery compared to the original cabling in the weapon.

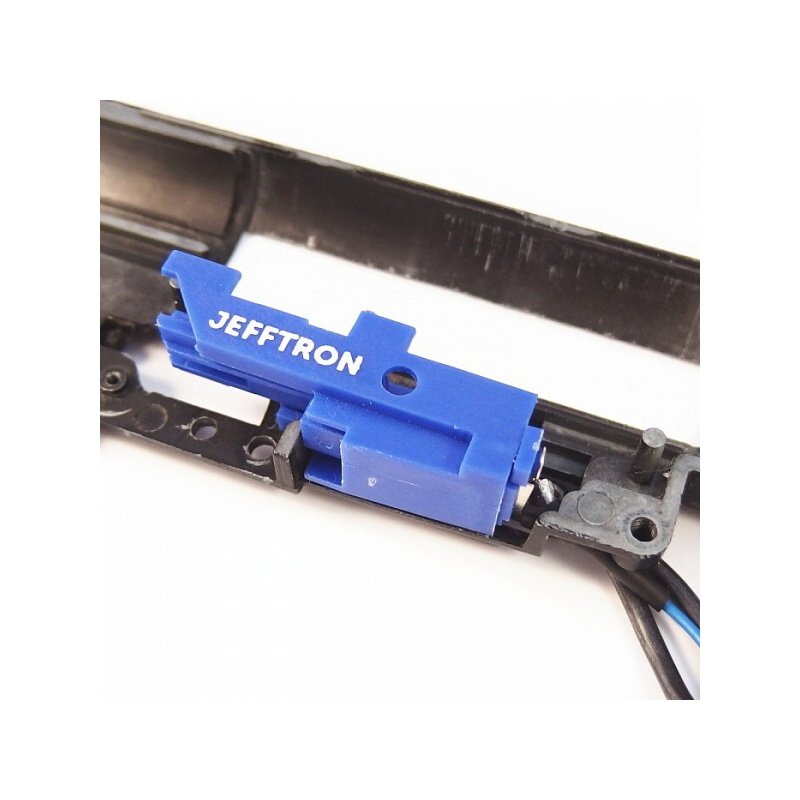

Fully integrated device inside the V3 gearbox instead of the original trigger contacts according to the Tokyo Marui standard.
Finished cabling adapted for the battery above the gearbox with DeanT connector - there is no need to solder anything.

SPECIFICATIONS:
- Built-in mosfet on switching contacts from SHS
- Easy installation inside the V3 gearbox
- Complete cabling allows quick and easy installation in the weapon, it is designed for all types of AK type weapons with a battery located above the gearbox
- Power conductors with thin and rigid MPPE insulation with a cross-section of 1.5 mm2 (AWG16), blue conductor with a cross-section of 0.34 mm2 (AWG22) with MPPE insulation
- The electronics board is covered with a varnish that protects against the ingress of water into the device
- If you want to use your own wires, choose the variant without cabling
- If you need a different type of cabling, choose the variant with universal cabling
- Designed for springs up to m160 (corresponds to a current of 75A for a single shot or 25A dose firing for a maximum of 30s). For higher loads, choose Mosfet II (placed outside the gearbox)
- Designed for all types of commonly used batteries up to 17 V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V)
- The trigger contacts do not burn
- No quiescent current is being drawn
- Due to the principle of operation of the AEG weapon mechanism, the piston stops in a random position in AUTO mode
- For the correct function of this device, it is necessary to have a functional interrupter, switch slide, reversing latch, trigger and trigger stop (locked) in the gearbox, ie as in the standard gearbox

PACKAGING:
- mosfet on switching contacts with powered conductors, DeanT connector, 30A mini plug fuse and with faston sockets on conductors
- Shutter shuttle
- installation manual

WARNING: To install this device, you need an expert who must be able to solder and disassemble the AEG weapon. Never use a transformer solder!
Despite all efforts, 100% device compatibility with all version 3 gearboxes cannot be guaranteed.
For most commonly available and widespread brands, Mosfet-V3 can be installed without major modifications.
