Mosfet V2 with wiring - JeffTron

Professionally designed mosfet designed for AEGs.
The device increases the cadence of the weapon and the endurance of the battery compared to the original cabling in the weapon.
Fully integrated device inside the v.2 gearbox instead of the original trigger contacts according to the Tokyo Marui standard.

SPECIFICATIONS:
- Built-in mosfet on switching contacts from SHS
- Easy installation inside the gearbox v.2
- Pre-prepared cabling allows faster and easier installation into the weapon, it is long enough for all types of weapons. Just shorten the wires to the required length and power the connectors (included)
- The device is soldered 2 black wires with thin and rigid MPPE insulation with a cross section of 1.5 mm2 (AWG16), length 300 mm to the motor and 700 mm to the battery, and a blue wire with a cross section of 0.34 mm2 (AWG22) with a length of 1000 mm for connection anywhere on the red wire
- The package also includes a 1000 mm long red wire with MPPE insulation with a cross section of 1.5 mm2
- The cabling is intended for the stock, but it can also be led to the forearm under the condition of turning the black wire on the battery (soldering on the board)
- The electronics board is covered with a varnish that protects against the ingress of water into the device
- If you want to use your own wires, choose the variant without cabling
- Designed for springs up to m160 (corresponds to a current of 75A for a single shot or 25A dose firing for a maximum of 30s). For higher loads, choose Mosfet II (placed outside the gearbox)
- Designed for all types of commonly used batteries up to 17 V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V)
- The trigger contacts do not burn
- No quiescent current is being drawn
- Due to the principle of operation of the AEG weapon mechanism, the piston stops in a random position in AUTO mode
- For the correct function of this device, it is necessary to have a functional interrupter, switch slide, reversing latch, trigger and trigger stop (locked) in the gearbox, ie as in the standard gearbox

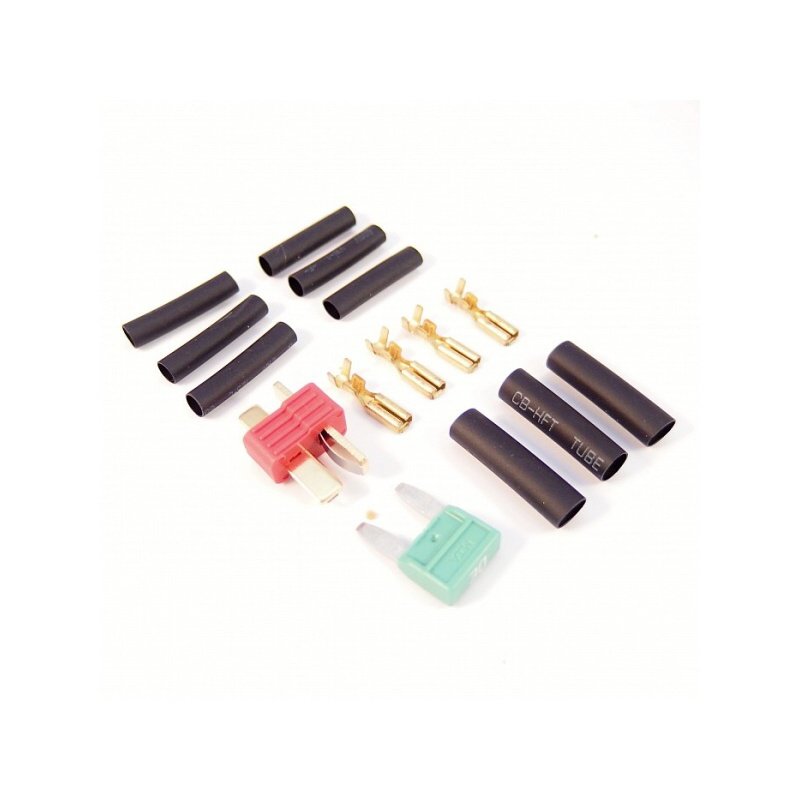

PACKAGING:
- mosfet on switching contacts with powered conductors
- Shutter shuttle
- screw, screw washer (for attachment to the gearbox)
- DeanT male connector
- 30A mini fork fuse
- 4x faston tube
- 6x black tube 3,2mm length 20mm
- 3x black tube 4.8mm length 20mm
- installation manual

WARNING: To install this device, you need an expert who must be able to solder and disassemble the AEG weapon. Never use a transformer solder!
Despite all efforts, 100% device compatibility with all version 2 gearboxes cannot be guaranteed.
For most commonly available and widespread brands, Mosfet - V2 can be installed without major modifications.
