Micro mosfet II by universal cabling - JeffTron

Professionally designed mosfet without cabling designed for airsoft electric weapons from the Czech company JeffTron.
The device increases the cadence of the weapon and the endurance of the battery compared to the original cabling in the weapon.

SPECIFICATIONS:

• Very small device size, fits almost anywhere
• Pre-prepared cabling allows faster and easier installation into the weapon, it is long enough for all types of weapons. Just shorten the wires to the required length and power the connectors (included)
• The device is soldered 2 black wires with silicone insulation with a cross-section of 1.5 mm2, length 500 mm and a blue wire with a cross-section of 0.25 mm2 with a length of 500 mm for connection anywhere on the red wire. The package also includes a 1000 mm long red wire with silicone insulation with a cross section of 1.5 mm2
• Encapsulated in a varnish that protects against the ingress of water into the device
• If you want to use your own wires, choose the variant without cabling
• Designed for springs up to m160 (corresponds to a current of 25A for 10 s). For higher loads, choose Extreme mosfet (placed outside the gearbox)
• Designed for all types of commonly used batteries up to 17 V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V)
• 5-wire connection
• The plus wire is not connected to the device
• Device size 15x7x5mm
• The trigger contacts do not burn
• No quiescent current is drawn
• Due to the principle of operation of the AEG weapon mechanism, the piston stops in a random position in AUTO mode
• For the correct function of this device, it is necessary to have a functional interrupter, switch slide, reversing latch, trigger and trigger stop (locked) in the gearbox, ie as in the standard gearbox

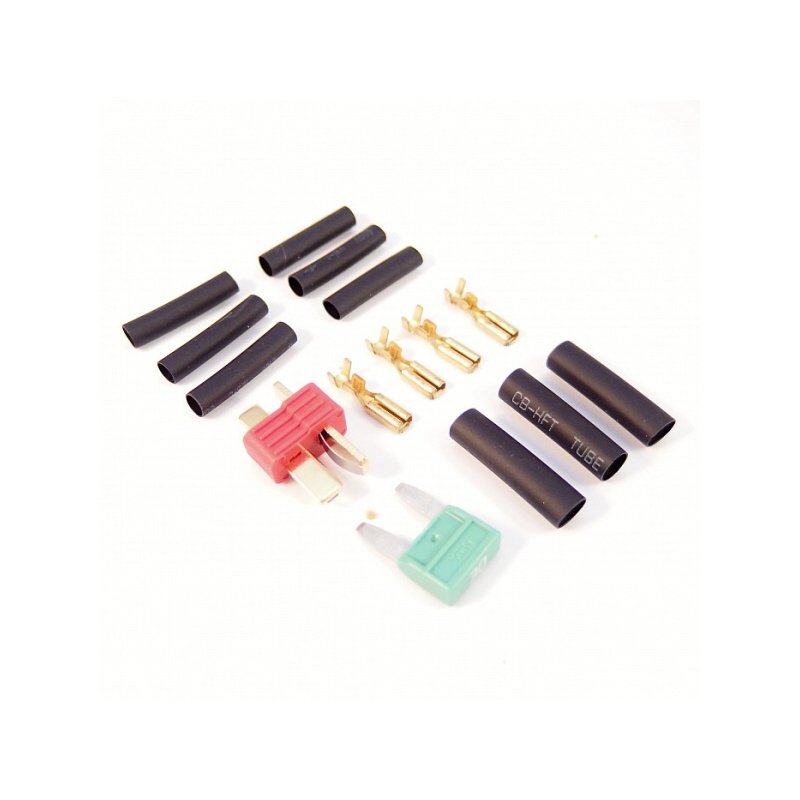

PACKAGING:

• Equipment with powered cabling
• DeanT male connector
• 30A mini fork fuse
• 4x faston dutinka
• 6x black tube 3.2mm length 20mm
• 3x black tube 4.8mm length 20mm
• Installation manual

WARNING:
To install this device, you need an expert who must be able to solder and disassemble the AEG weapon. Never use a transformer solder!
Despite all efforts, 100% device compatibility with all version 2 gearboxes cannot be guaranteed.
For most commonly available and widespread brands, Mosfet - V2 can be installed without major modifications.
