Piston head TECAFORM 213 NBU - Airsoft parts

DATA SHEET

• Catalogue code: HP-DUR-DOU-NBU
• Dimension: NBU
• Material: Tecaform (POM)
• Maximum suitable spring: M160
• Seal: 1 pcs O-ring + 1pcs guide rings
• Bearings: YES
• Weight: 11,4
• Compatible with the gearbox: v.2, v.3, v.7

Producer: Airsoft parts

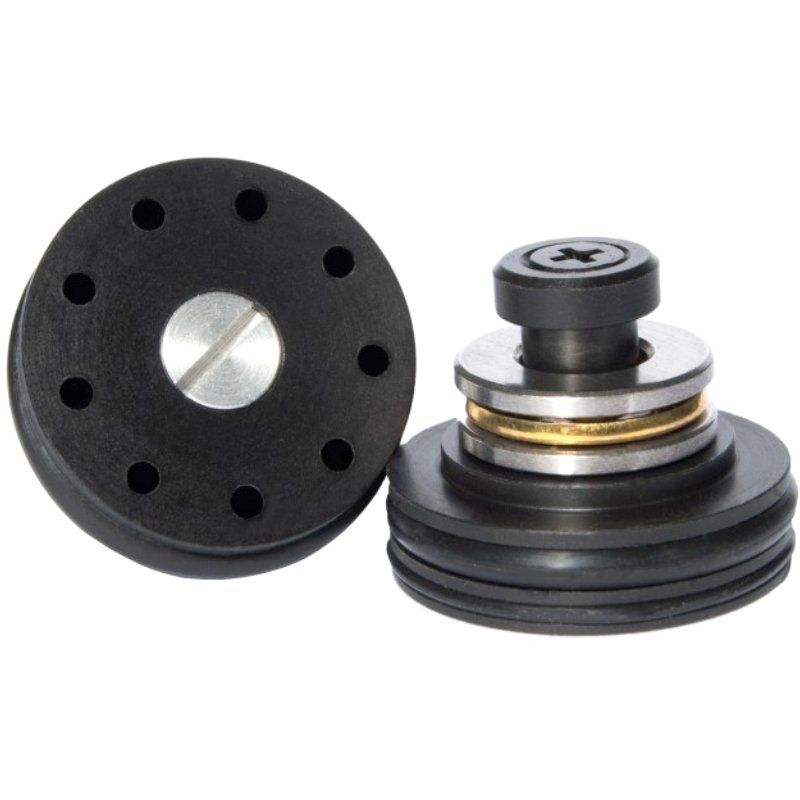

The piston head is made of a structural plastic TECAFORM also known as POM on the CNC machine. Nine holes are drilled on the front side.The air stream flows through these holes during compression thus expanding the O-ring which provides for better sealing of the space between the piston head and the cylinder.

The centre of the piston head is passed through by the lock nut, which spreads the clamping force over a larger area and therefore prevents breakage of the bolt from the body of the piston head.

This piston head also incorporates an axial ball bearing.

!! NBU piston head has modified dimensions. For this reason, it is only possible to combine with the NBU cylinder. !!

Advantages:

• High resistance
• Perfect sealing + guide rings
• Axial ball bearing for easy spring rotation
• Plastic nut that reduces total weight
