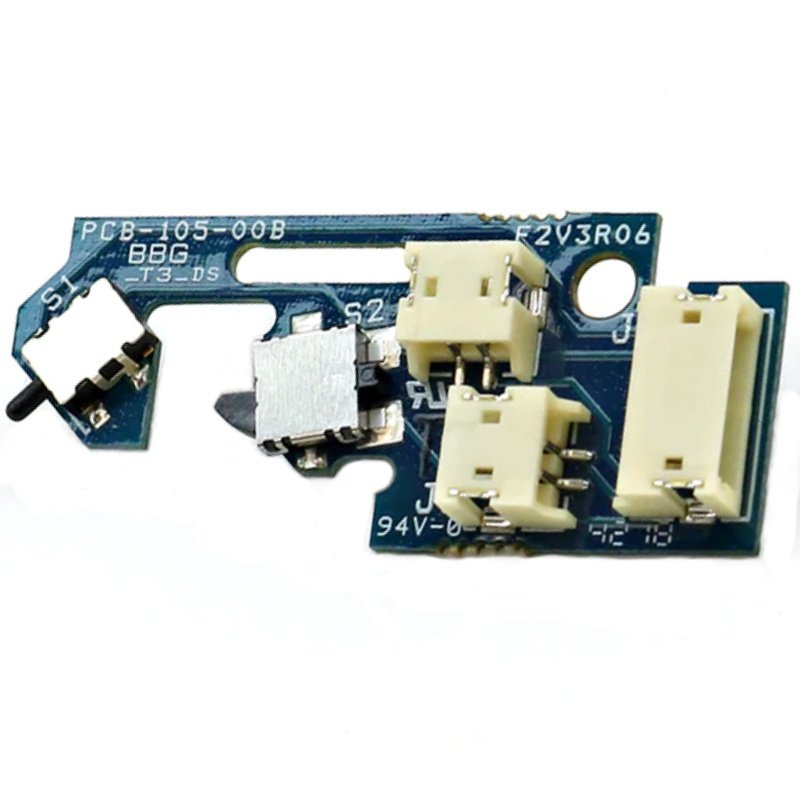

Switchboard V3 [Fusion Engine Excluded] - PolarStar

Switchboard for use with dual or single solenoid cylinder conversion kits such as the F2, F1 or JACK. It is NOT compatible with the Fusion Engine.

This switchboard is designed to replace the original trolley type trigger switch in a traditional TM spec V3 gearbox. It is not compatible with variants of the V3 gearbox which use a snap-action/microswitch trigger such as in the Ares V3 gearboxes.

Header Identification: J1 = Main Harness, J2 = Poppet Solenoid, J3 = Nozzle Solenoid

(Single solenoid systems should be plugged into J2, leaving J3 empty)
