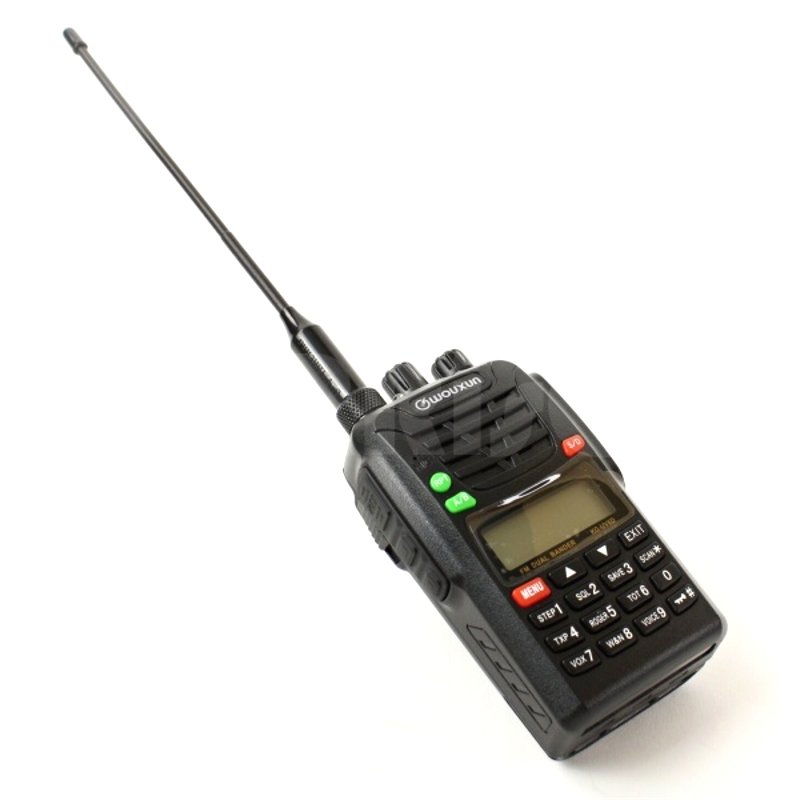

Vysílačka KG-UV6D pásmo 136-174MHz, 400-480 MHz - Wouxun

• Frequency Range Can Be Suitable for Different Countries or Areas  • Dual Band, Dual Frequency, Dual Display and Dual Standby  • 199 Memory Channels  • Wider RX/TX frequency band, RX:370-512MHz, TX:400-512MHz  • SMA-K Antenna Connector  • Repeater Multifunctional Key  • High Capacity Li-ion Batterypack  • IP55 Waterproof  • Multi Step Frequency(5K/6.25K/10K/12.5K/25K/50K/100K)  • DTMF Encoding Function  • Working mode: VHF & UHF, UHF & UHF or VHF & VHF  • CTCSS/DCS Scan  • VOX Transmission  • SOS Function  • Band Can Be Set Freely: VHF TX-UHF RX or UHF TX-VHF RX  • Digital FM Radio  • Bandwidth Selectable  • Multi Scan Mode  • Priority Scan, Add Scanning Channel  • High/Low Power Selection  • Channel Name Edit and Display  • 50 Groups CTCSS / 105 Groups DCS  • Low Voltage Voice Prompt  • Transmit Overtime Voice Prompt  • Begin/End Transmitting Beep Prompt  • 1750Hz Tone  • Auto/Manual Keypad Lock  • Bright Flashlight Illumination  • Wire Clone, Programmable by Computer  • Display Selection on Channel Mode  • Power on Display Message Customizable  • English Voice Guide   Technical Specification:   KG-UVD6D Technical Specification Frequency Range  Frequency Range Can Be Suitable For Different Countries or Areas     136-174&400-480MHz (RX/TX)       FM: 76-108MHz (RX)  Memory Channels  199 channels  Frequency Stability  ±2.5ppm  Operating Voltage  7.4V  Operating Temperature   -30?~+60?Waterproof IP 55  Antenna Impedance  50?  Dimension  65x119x39.5(mm)  Weight  253g  Transmitter  Frequency Stability  ±2.5PPM  RF Carrier Power  UHF: 4W VHF: 5W  Effective Radiation Power (ERP)  within pre-determined value ±7.5dB  Max. Frequency Deviation  Channel Space: 25KHz  ±5KHz  Channel Space: 12.5KHz ±2.5KHz  Audio Modulation  +3dB (pre-emphasis by 6dB between 0.3-3KHz)  Adjacent Channel Power  Channel Space: 25KHz  ?70 dB  Channel Space: 12.5KHz  ?60 dB  Spurious Radiation  ?-30dBm  Inter modulation Attenuation  ?40dB  Modulation Distortion  ?10%  Residual FM  ?-35dB  Residual AM  ?3%  Receiver  Sensitivity (12dB SINAD)  0.16µV  Squelch Rejection Sensitivity  ?0.8µV  Squelch Sensitivity  ?0.2µV  Audio Output power  500mW  Audio Distortion  ?5%  Audio Response  (300-3000Hz)  +1 to -3dB  Co-channel Rejection  ?-8.0dB  Performance of Amplitude Limiter  ?3  Adjacent Channel Selection  Channel Space: 25KHz  ?70 dB  Channel Space: 12.5KHz  ?60 dB  Inter-modulation  ?65 dB  Resistance  ?84 dB  Spurious Radiation  9KHz-1GHz?-57dBm  1GHz-4GHz?-47dBm Český návod http://www.armymarket.cz/obrazky/UV6D_PEN_CZ_MoRRiScz.pdf
