Tactical LED flashlight TK16 V2.0 - Fenix

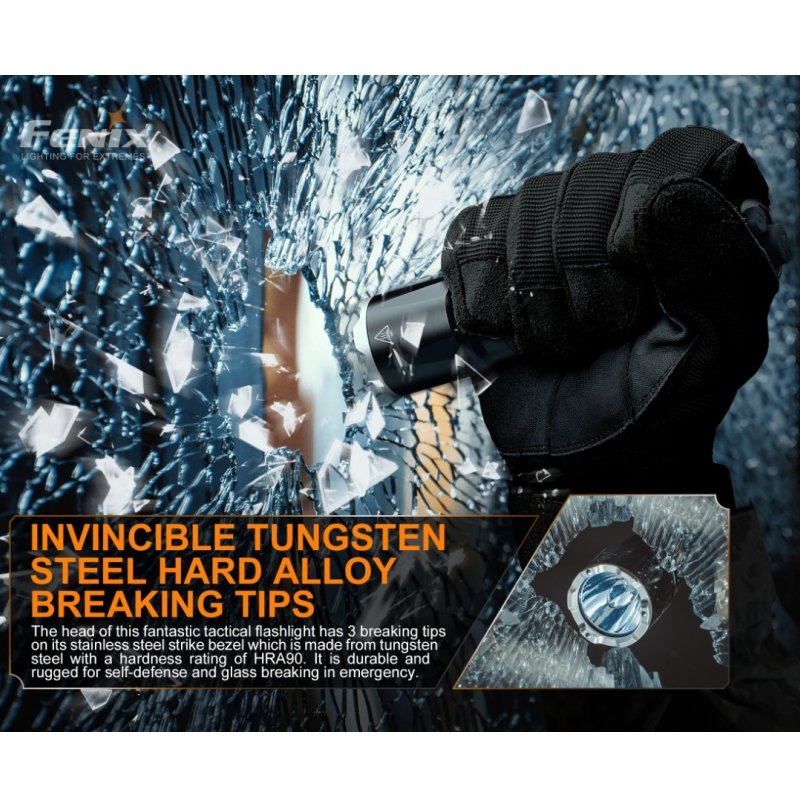

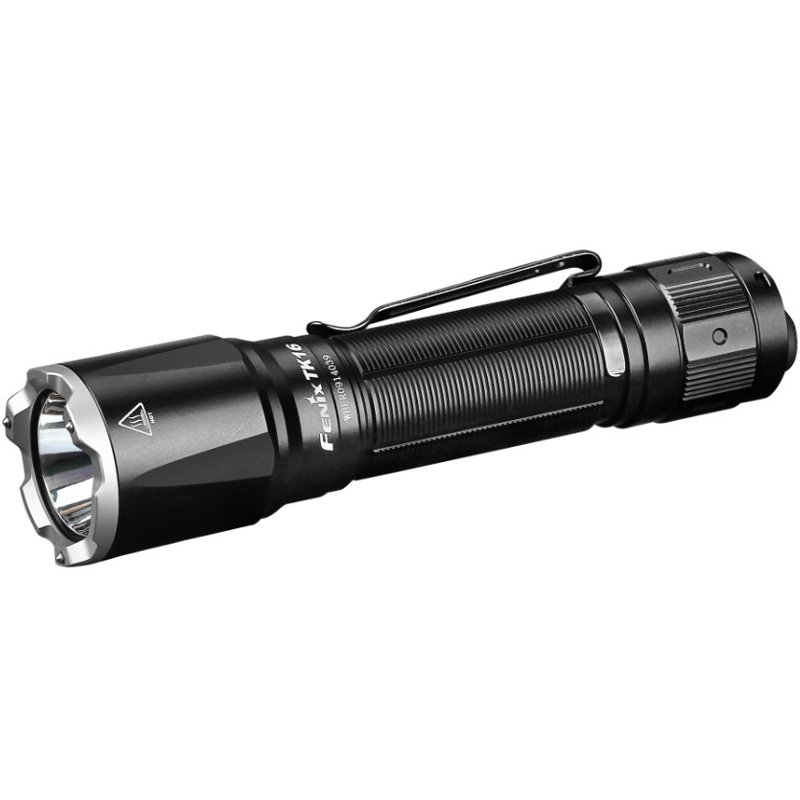

The powerful Fenix ​​TK16 V2.0 tactical flashlight offers a peak luminous flux of up to 3100 lumens (ANSI) and an afterglow of up to 380 meters. The flashlight is powered by a single Li-ion battery type 21700 with a USB-C connector (included), which supplies power for up to more than 43 hours of lighting. Very solid and waterproof design and two-layer body construction predestine this tactical flashlight for harsh outdoor conditions, for professionals, armed forces and hunting. The Fenix ​​TK16 V2.0 LED flashlight uses a dual tactical switch, which enables faster and more reliable control in crisis situations. For example, it can be quickly switched directly to strobe mode. The head of the lamp is equipped with a striking steel rim, which is additionally equipped with three tungsten steel tips. Therefore, flashlight can be used to break through the glass in crisis situations or for self-defence. The flashlight is powered by a digitally controlled constant current to guarantee constant light output even when the voltage in the batteries is reduced (during their gradual discharge).

All flashlight parameters (luminous flux, battery life, water resistance, afterglow and impact resistance) are measured in accordance with the ANSI / NEMA FL 1-2009 standard.

• Max endurance: 43 hours
• Power supply: 1x 21700
• Number of modes: 6
• Water resistance: IP68 (draft 2 m)
• Light colour: Daylight white (5500-6500 K)
• Light source: Luminus SST-70
• Weight 112 g
• Brand: Fenix
• Product code: TK16V20

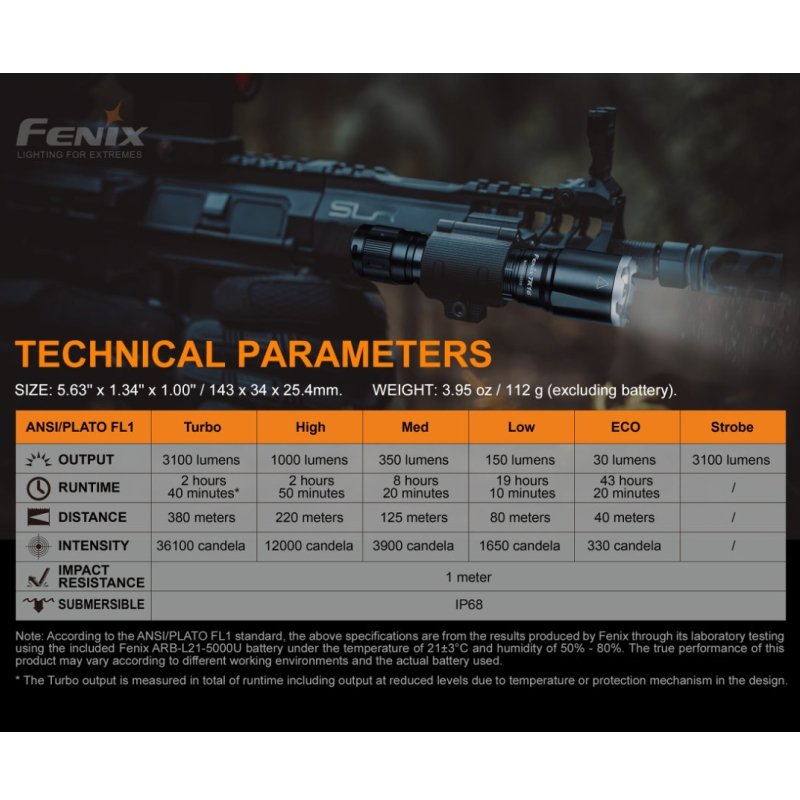

Parameters of Fenix ​​TK16 V2.0 LED flashlight:

• A powerful LED Luminus SST-70 with a lifespan of 50,000 hours is used.
• Six power modes: 3100 lumens (2.66 hours) -> 1000 lumens (2.8 hours) -> 350 lumens (8.3 hours) -> 150 lumens (19.2 hours) -> 30 lm (43.3 hours) ->
• strobe (strobe flashing).
• Parabolic aluminium reflector for a perfect light cone with an afterglow of over 380 meters (36100 cd).

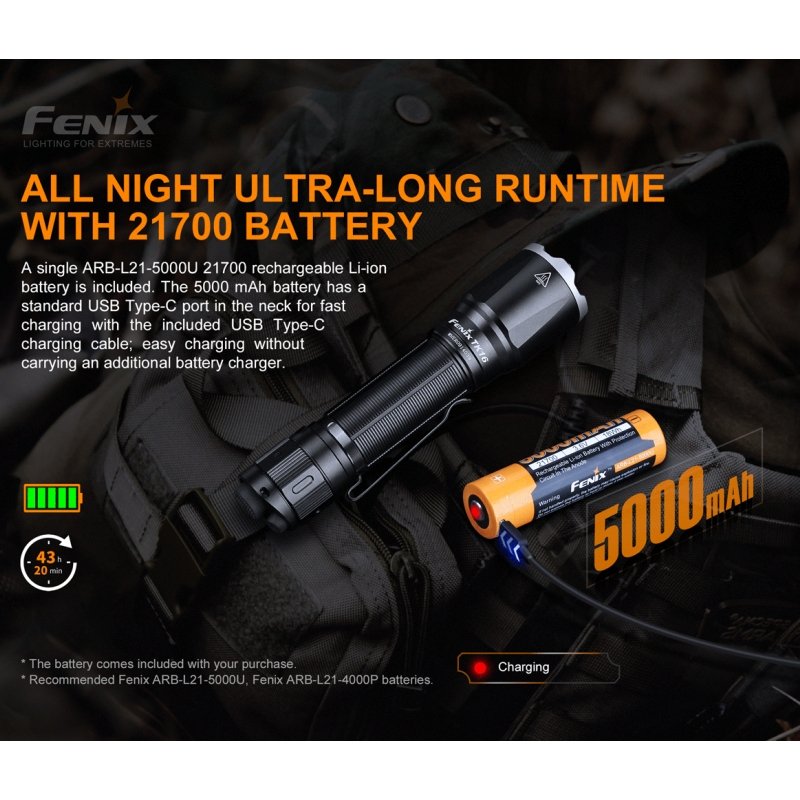

• It is powered by a Li-ion battery type 21700 with a USB-C connector (included).
• Endurance times are measured with a rechargeable 21700 Li-ion battery with a capacity of 5000mAh.
• Electronics with digital constant power control and protection against reverse battery insertion.
• Two-spring system - high resistance of the flashlight when used on a weapon.
• Intelligent protection against overheating.

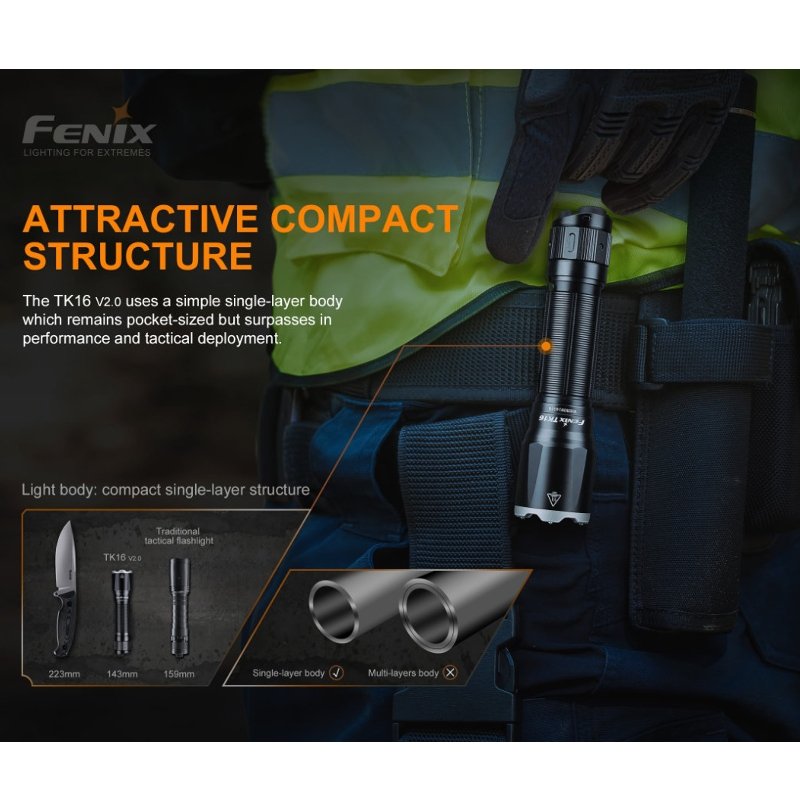

• Dimensions 14.3 cm (length) x 3.4 cm (head diameter) x 2.54 cm (body diameter) .Weight 112 grams (without batteries), 184 grams including battery.

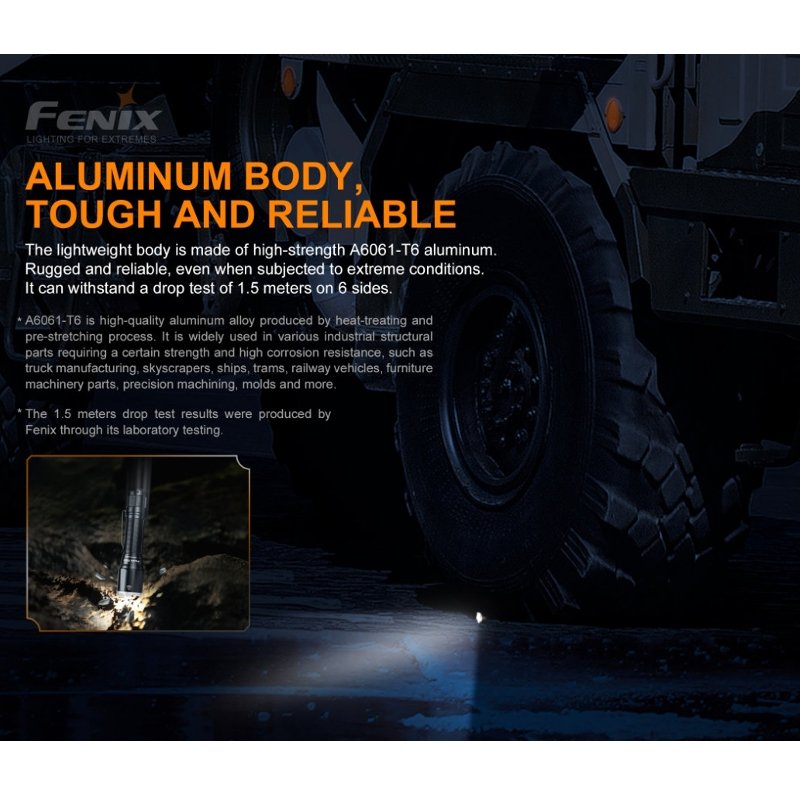

• Made of aviation hardened aluminium.
• Impact-resistant to falls from a height of 1 meter.
• Highly wear-resistant trapezoidal threads.
• The flashlight has a memory and always switches on in the last set mode (does not apply to the strobe).
• Durable hard scratch surface - Type III hard anodized.

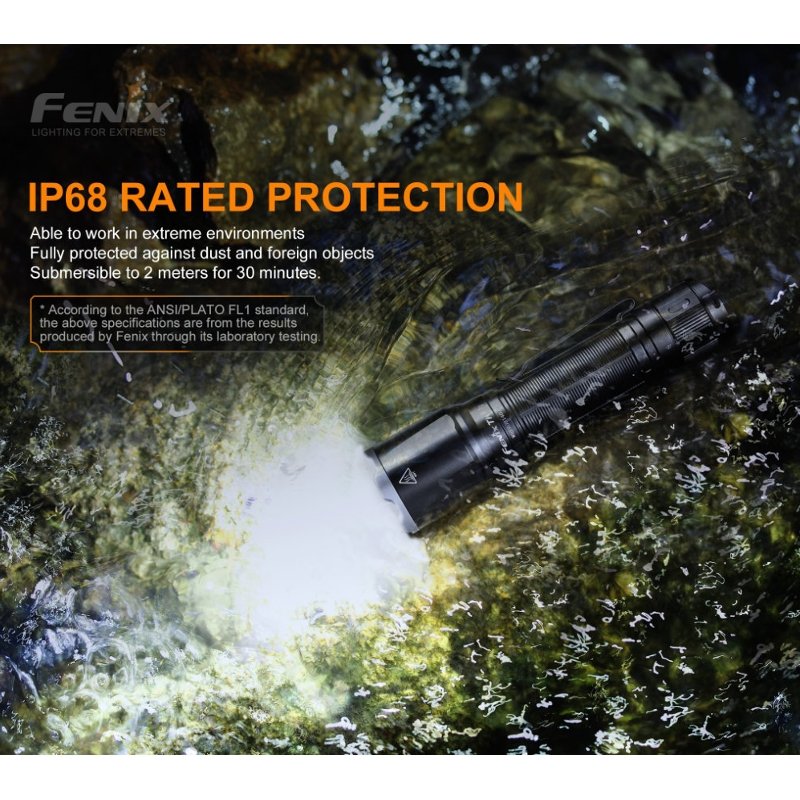

• Waterproof and dustproof according to the IP68 standard (tested underwater at a depth of 2 meters for 30 minutes).
• Toughened ultra-clear glass lens with an anti-reflective surface.

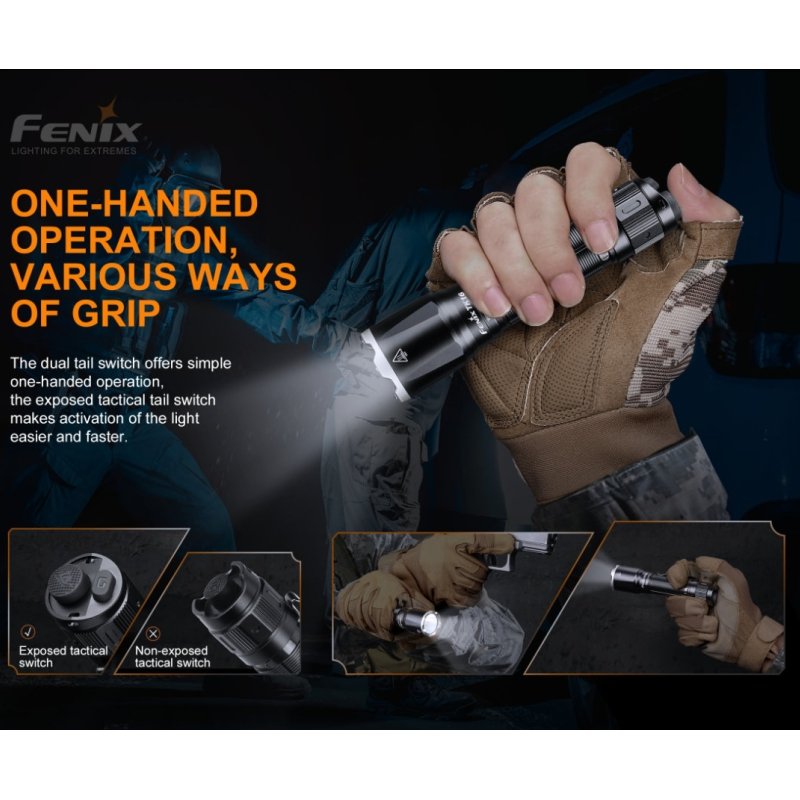

• Dual tactical switch at the end of the flashlight (momentary on/off function).
• Sturdy clip for safe and easy carrying of the flashlight (removable).
• Thanks to its design, the flashlight does not slip in the hand and does not rotate when placed.

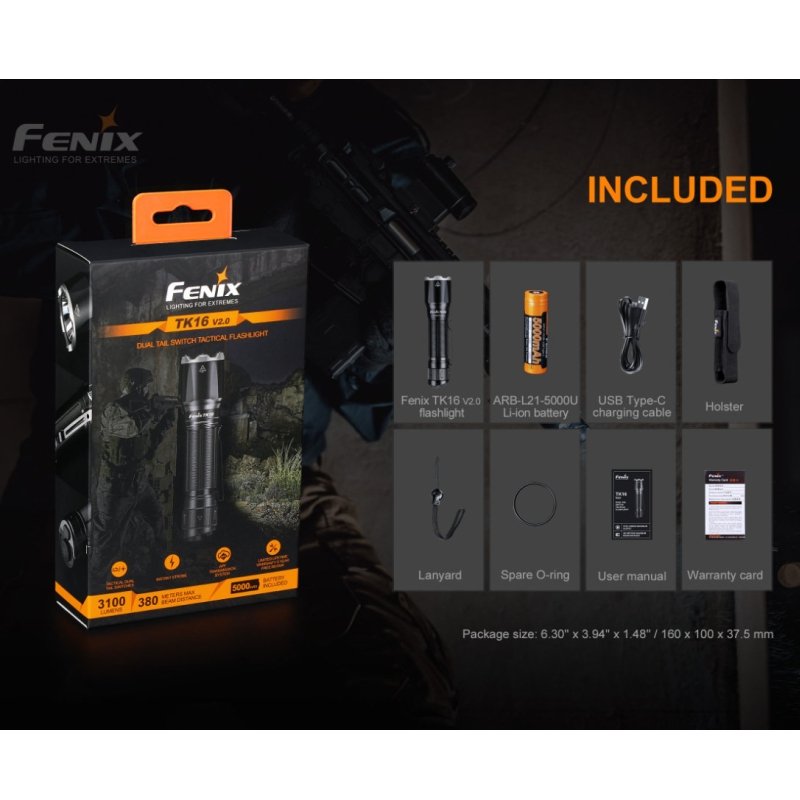

• The flashlight is supplied with a Fenix ​​ARB-L21-5000U battery with a USB-C connector, a USB-C charging cable, a wrist strap, a belt case and a spare o-ring.

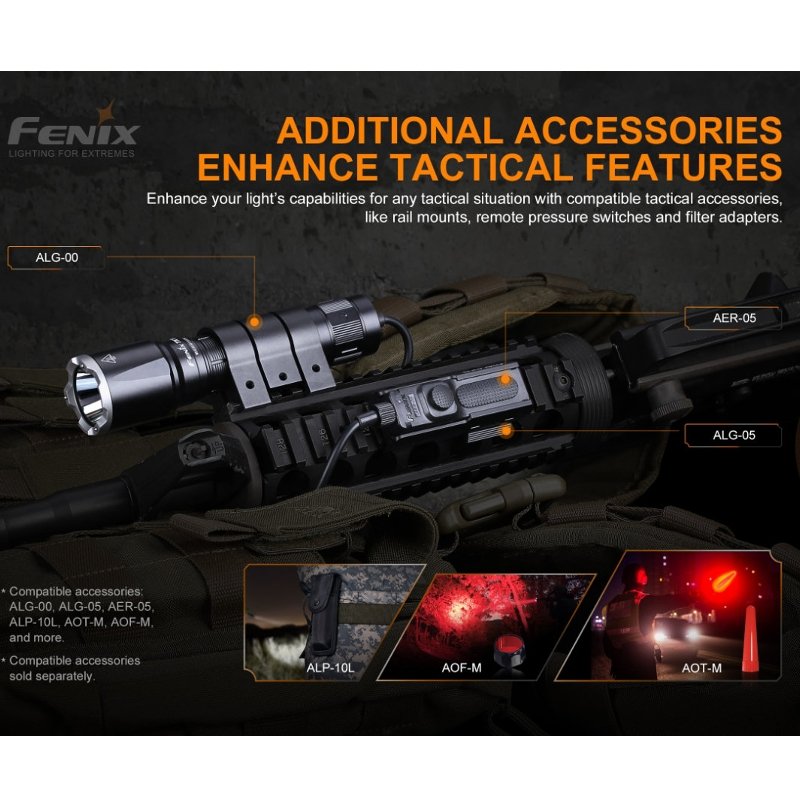

• Optional accessories: cable switch AER-05, red filter AOF-M, white diffuser AOD-M, traffic cone AOT-M.
• The following accessories are also compatible with the flashlight: quick-release mounting on ALG-00 rail, mounting on ALG-01 weapon rail, side mounting, barrel
• mounting, metal magnetic barrel mounting, plastic magnetic barrel mounting, lamp mounting on optics, metal mounting for optics, bike holder, Fenix ​​bike holder,
• ALP-10L case, ALP-MT case.
• Caution, remote switches AR-102, AER-02, AER-03 or AER-04 cannot be used! (other thread).

Fenix TK16 V2.0 flashlight control:

By default, there may be a black insulating cap on the battery inside the flashlight. Remove it from the battery before using it for the first time.

To turn on, press the larger tactical button located at the end of the flashlight, to activate immediately, press the button. You can switch between power modes at any time during operation by pressing the secondary toggle button. To switch to flash mode with the flash on, hold down the toggle button for about 0.5 seconds. To turn the flashlight directly into strobe mode, press and hold the toggle button.

Intelligent protection against overheating - due to the fact that the lamp achieves a huge output of 3100 lumens, its temperature rises. If the temperature exceeds 60 ° C, the power will be reduced automatically. As soon as the temperature drops below 60 ° C, the highest power can be used again.

Low battery warning - the flashlight automatically switches to the lowest mode and flashes 3 times every five minutes.

Notice:

• Use only high-quality rechargeable batteries type 21700 with protective electronics.
• Insert the batteries with the positive side facing the lamp head.
• If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent rubber erosion.
• By following these rules, the lamp will be properly protected against water.
• If the flashlight is blinking, does not switch to higher power modes, or does not turn on, this may be one of the following reasons:
• The battery is a flat - charge or replaces it.
• The contacts inside the flashlight are dirty - clean them with a cotton swab dipped in alcohol.
• The head, body or back of the lamp is loose, tighten it.
