Flashlight TK32 XP-L - Fenix

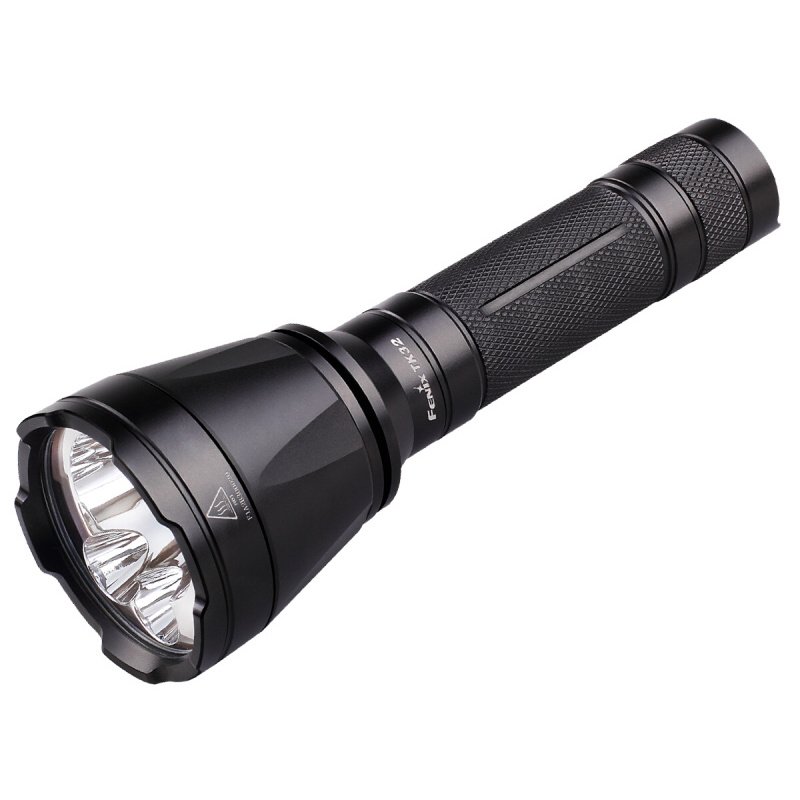

Tactical LED flashlight Fenix ​​TK32 XP-L

The second generation of the Fenix ​​TK32 flashlight is one of the strongest tactical flashlights on offer, compared to the previous version, the performance of colored LEDs has been significantly enhanced. Its powerful reflector offers an afterglow of up to 422 meters and a luminous flux of up to 1000 lumens (ANSI). A unique advantage are color diodes (red, green) with their own reflectors. The main light source is the most modern Cree XP-L HI V3 LED, the colored light is provided by two Cree XQ-E LEDs. The flashlight can be powered by two CR123A lithium batteries or one 18650 type li-ion battery. The Fenix ​​TK32 LED flashlight has a total of four white light functions with a lifespan of up to 170 hours and four color light modes. At the rear of the lamp is a tactical switch allowing immediate activation by pressing halfway and a second switch which controls the lighting modes. Fenix ​​TK32 2016 Edition is a top lighting tool for professionals and hunters.

All lamp parameters (luminous flux, battery life, waterproofness, afterglow and impact resistance) are measured in accordance with the ANSI / NEMA FL 1-2009 standard.

PARAMETERS:

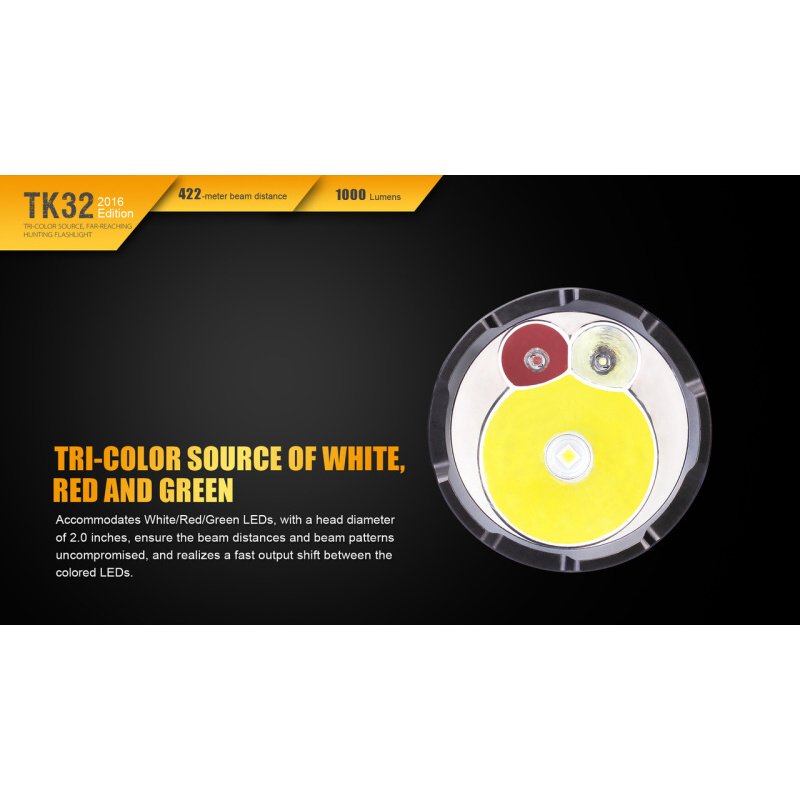

• - The premium LED Cree XP-L HI V3 with a lifespan of 50,000 hours and two color LEDs Cree XQ-E (red, green) are used.
• - Eight lighting modes: 1000 lumens (1.8 hours) -> 350 lumens (4.75 hours) -> 100 lumens (15.5 hours) -> 8 lumens (170 hours) -> red 105 lumens (4.25 hours) -> red 15 lumens (65 hours) -> green 165 lumens (5.5 hours) -> green 30 lumens (40 hours).
• Large smooth reflector for light cone with an afterglow of 422 meters (44500 cd). The afterglow of the color diodes is 105 meters for green and 65 meters for red.
• - Endurance times are measured with a rechargeable 18650 li-ion battery with a capacity of 3500 mAh.
• - Electronics with digital constant power control, protection against reverse battery insertion and protection against excessive battery discharge.
• - Two 3 V CR123A lithium batteries or one 18650 rechargeable Li-ion battery can be used for power.
• - Dimensions 15.9 cm (length) x 5.2 cm (head diameter) x 2.54 cm (body diameter).
• - Intelligent overheating protection: if the LED temperature exceeds 65 degrees, the lamp will automatically reduce power.
• - The body of the lamp is made of aviation hardened aluminum, the head of the lamp is supplemented by a striking rim.
• - Durable hard scratchable surface.
• - Type III hard anodized.
• - Impact resistant to falls from a height of 1 meter.
• - Highly wear-resistant trapezoidal threads.
• - Weight 175 grams (without batteries).
• - Waterproof according to the IPX-8 standard (tested underwater at a depth of 2 meters).
• - Toughened ultra clear glass lens with anti-reflective surface.
• - Batteries placed between two springs
• - easily withstands kickback when used on a weapon.
• - Tactical switch at the end of the flashlight (momentary on / off function).
• - The wrist strap, belt holster and spare O-rings are included with the flashlight.
• - Batteries not included.

Maximum endurance: 110 hours

Power supply: 2x CR123A, 18650

Number of modes: 8

Light color: Daylight white (5500, 6500 K)

Red Water resistance: IP68 (draft 2 meters)

Light source: Cree XP-G2, Cree XP-E2

Weight: 156.5 g

CONTROL:

To turn on, press the main switch located at the end of the lamp, to activate immediately, press the button. You can switch between power modes at any time during operation by pressing the second smaller button. To switch to colored lighting, turn on the flashlight with the main switch and hold the smaller button for about 1 second, short presses of the smaller button can be cycled between the colored light modes in the order red high - red low - green high - green low. The flashlight remembers the last selected mode (only works with white light modes).

The red light can be activated directly from the off state, just press and hold the smaller button on the tip of the lamp. Its quick presses can be used to switch to other color modes. Low battery warning - the flashlight automatically switches to the lowest mode and flashes 3 times every five minutes.

Intelligent overheating protection - if the lamp temperature rises above 65 ° C, it will automatically start to reduce power in gradual steps of 5% every 30 seconds until its temperature stabilizes. As soon as the temperature of the lamp drops below 65 ° C, the power automatically increases again to the original level. Operation at the highest power mode is not limited by time, but only by temperature.

NOTICE:

• - Use only high-quality 3V CR123A batteries or rechargeable 18650 batteries to prevent damage to the lamp, for example due to leakage of substances from the battery.
• - Insert the batteries with the positive side towards the head of the lamp.
• - If the protective rubber rings appear damaged after prolonged use, replace them. The rings should also be lubricated to prevent rubber erosion.
• - By following these rules, the lamp will be properly protected against water.
• - If the flashlight flashes, does not switch to higher power modes or does not light up, this may be due to one of the following reasons:
  • - The batteries are almost empty - replace them.
  • - The contacts inside the lamp are dirty - clean them with a cotton swab dipped in alcohol.
  • - The head, body or back of the lamp are loose, tighten it.
