Rechargeable battery Fenix 21700 5000 mAh with USB-C (Li-Ion) - Fenix

Rechargeable battery Fenix 21700 5000 mAh (ARB-L21-5000U) with its own charging USB-C connector. It can be charged by connecting the cable to the USB-C connector (eg from a computer, power bank or mobile phone charger) as well as in a classic Li-ion charger. Fenix 21700 5000 mAh rechargeable batteries with protected electronics are based on state-of-the-art LiNiCoO2 technology, which brings higher safety and longer life. Li-ion rechargeable batteries are characterized by a very high capacity, do not suffer from the memory effect or self-discharge. Li-ion in size 21700 is the best choice in terms of stored energy due to the size and weight of the battery, they are gradually gaining ground in the automotive industry, for example.

Fenix battery protection consists of internal safety mechanisms and protective electronics. Added electronic circuits prevent overcharging the cell, its excessive discharge and against short circuit or too high current consumption. If the battery electronics evaluate that the limit values have been reached, they will safely disconnect the cell.

The internal protection consists of a separator, state-of-the-art Positive Temperature Coefficient (PTC) and a special explosion-proof valve. In the event that the gas pressure in the cell exceeds a certain limit, the internal separator separates the electrodes inside the battery and thus de-facto interrupts the exothermic reaction and the explosion-proof valve releases the gas overpressure outside the accumulator. Thanks to the combination of electronic and mechanical (temperature and pressure) protection, Fenix batteries are among the safest Li-ion batteries available.

This battery is designed, for example, for operation in the LED flashlight Fenix HT18, PD36R, TK22 V2.0, TK22 UE, E35 V3.0. However, it cannot be used in 18650 battery flashlights due to its larger dimensions!

Due to the length of the battery of 76 millimetres (including protective electronics), it can only be charged in chargers that are adapted to this length. See. recommended chargers below.

Parameters of USB battery Fenix ​​21700 5000mAh:

• Nominal voltage: 3.6 V
• Capacity: 5000 mAh, tested with a discharge current of 0.2 C with termination at a voltage of 2.5 V and a temperature of 25 ° C
• Maximum current consumption: 8 A
• Maximum charging current: 5 A
• Charging current of the built-in USB-C connector: 2A.
• Charging time approximately 3-4 hours.
• Dimensions: 21.5 mm (diameter) x 76 mm (length) (+/- 0.5 mm)
• Weight: 72.5 grams
• Protection against overcharging, complete discharge and short circuit (> 8 A). Protective circuit mounted on the positive pole.
• The lifespan of more than 500 charging cycles
• Recommended operating temperatures: 0-45 ° C (charging), -20 to + 60 ° C (discharging)
• Scope of delivery: one piece of USB battery Fenix ​​21700 5000mAh (ARB-L21-5000U)
• The charging cable is not included. If necessary, you can buy a basic USB-C cable or a colour USB-C cable, or you can use a reduction from micro-USB to USB-C.

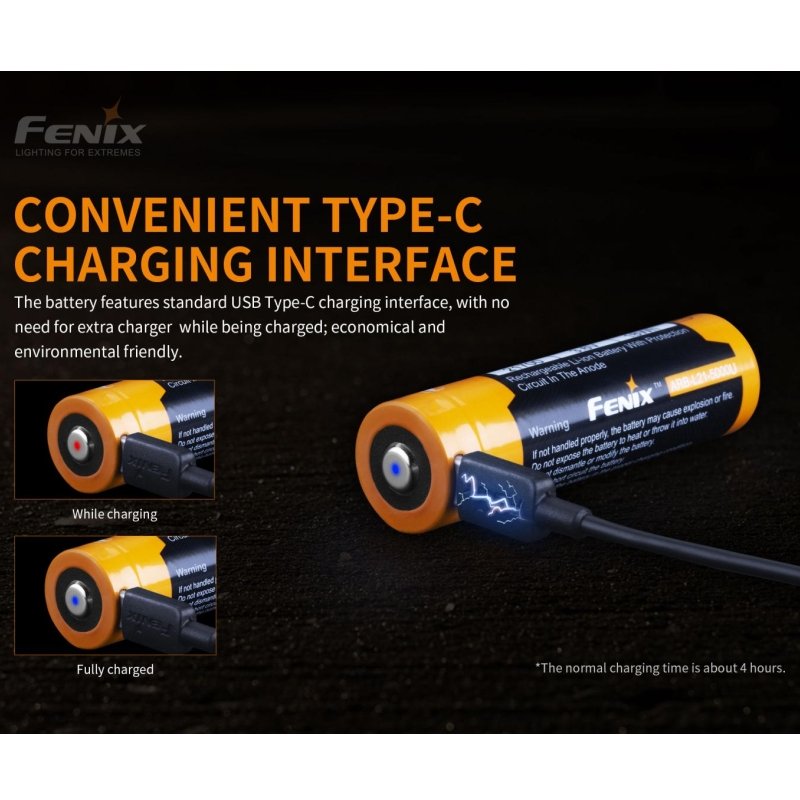

• Charging via USB-C connector
• Connect the USB cable to the side USB-C connector, the indicator light in the positive terminal of the battery lights up red during charging. Glows blue or green when fully charged.

Recommended chargers:

• The battery can also be charged in chargers for Li-ion batteries type 21700:

  • Fenix ARE-A2 charger
  • USB charger Fenix ARE-D1
  • USB charger Fenix ARE-D2
  • Fenix ARE-A4 charger
  • USB charger SC1
  • Eight-channel USB charger VC8

Notice:

• If possible, do not discharge the battery below 2.5V
• Do not short-circuit the battery (do not connect the cell poles with a wire)
• Do not dispose of the battery in fire or water
• Do not insert the battery into the charger upside down (reverse polarity)
• Observe safety precautions when using the battery
• Use only an adequate charger that supports Li-ion batteries
