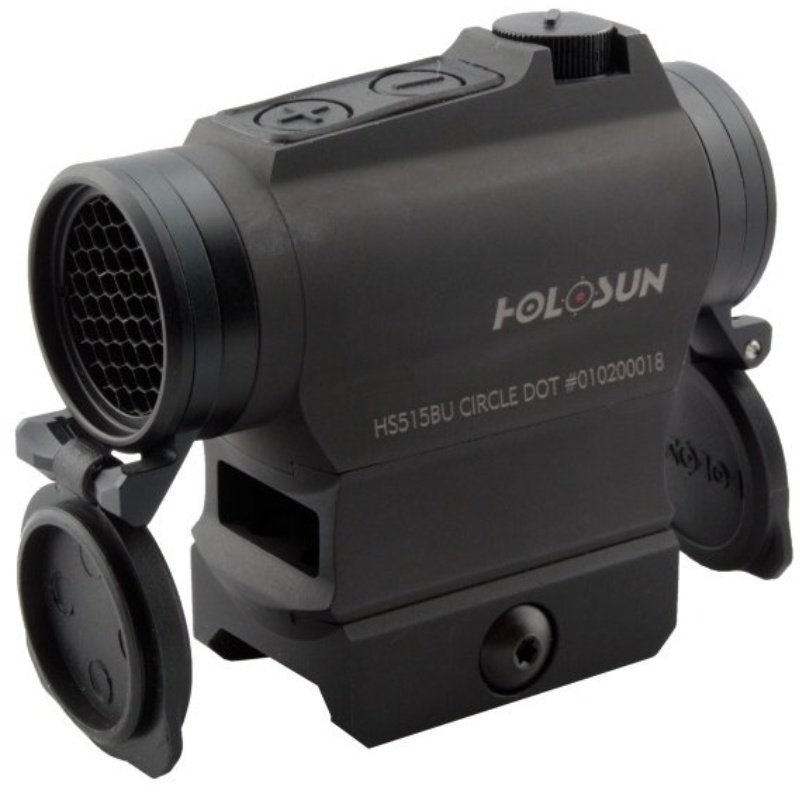

HOLOSUN HS515B-U Red dot sight - HOLOSUN

The HS515BU collimator is the highest model in the Classic series. The body is made of aviation aluminum with a quality body treatment by plasma electrolysis.

On the collimator you will find gadgets such as:

• hinged Flip-UP caps,
• quick-clamping QD assembly,
• switchable warp - 2 MOA dot or pattern 65 MOA + 2 MOA dot.

Advantages of the Holosun collimator:

• automatic control of the warp using a solar panel.
• small size - diameter only 22 mm.
• switchable outline - 2 MOA dot and 65 MOA dot or 2 MOA dot.
• waking up from sleep by movement.
• memory that stores the last setting before shutting down.
• in package low and high assembly QD assembly.
• high battery life up to 50,000 hours.
• made of aluminum alloy, treated with quality surface treatment by plasma electrolysis.
• available battery stored in the body of the CR2032
• 12 levels of brightness intensity (2 for night vision)

• without parallax.
• unlimited eye relief.

Control electronics:

Each of the HOLOSUN collimators is equipped with control electronics with integrated memory. keeping the last setting before switching off.

• the automatic shut-off function is factory set to 10 min.
• if the collimator is idle, it will turn off automatically.
• after the slightest movement, the collimator automatically switches to its original state before switching off.

The collimator can be switched off manually, in which case the motion sensor will not be active.

Designed for these weapons:

• Holosun collimators can be used on all types of firearms.
• They can be used from pistols, self-loading rifles, shotguns to hunting weapons of large caliber 9.5 × 73.
• hunting rifles and shotguns.
• weapons type SA 58, AR-15 and AK47 / 74.
• guaranteed recoil resistance up to 9.5 × 73 caliber (.375 weatherby).

Parallax free:

• HOLOSUN collimators are constructed without parallax.
• The shooter does not have to look in the optics axis when shooting, just like when shooting with open sights.
• This advantage offers the shooter an immediate alert. Just cover the target with the warp and press the trigger.
• This advantage will be appreciated especially by hunters and shooters in tactical disciplines.

Night vision support:

• HOLOSUN collimators are compatible with night vision devices.
• In the case of using night vision, the collimator is equipped with two levels of intensity that are not visible to the human eye in a normal environment.
• This is the first and second brightness levels that are compatible with NV.

Recoil reliability:

• The collimator withstands a shock of 1000 G, which is equivalent to a caliber of 9.5 × 73 (.375 weatherby).
• You can also use it perfectly on hunting and sports calibers, including a shotgun.

Parameters:

• tube: 20 mm.
• product line: Classic.
• aiming syllabus: 65 MOA - pattern + 2 MOA - dot.
• aiming outline color: red.
• solar panel: no.
• battery: CR2032.
• battery life: up to 50,000 hours.
• killFlash: Yes.
• body color: black.
• flip-up caps: Yes.
• warp shift per click: 0.5 MOA.
• H&V adjustment range: ± 50 MOA.
• mounting: QD mounting - Weaver / Picatinny.
• material: aluminum 6061 T6.
• surface treatment: MAO (plasma electrolysis).
• weight: 105.99 g.
• dimensions: 6.93 x 3.88 x 4.08 cm
